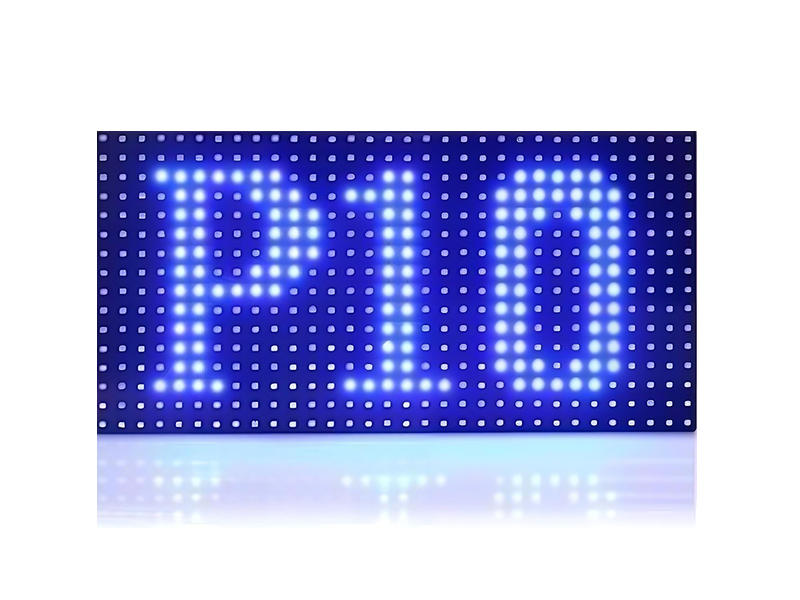

A high-performance monochrome display module engineered for reliable, long-distance information display in functional and public applications. With a 10mm pixel pitch and high-brightness Bule LEDs, it delivers excellent readability and operational stability in both indoor and sheltered outdoor environments.
бренд :
HoozoeМодель :
P10 SMD Monochrome LED Blue ModuleЗаказ (минимальный объем) :
80 pcsОплата :
TTПроисхождение продукта :
ZhangzhouЦвет :
RedПорт отправки :
XiamenВремя выполнения :
7-15 daysМасса :
230Features
Clear Long-Range Display: A 10mm pixel pitch is optimized for crisp text and simple graphics at viewing distances beyond 15 meters, ensuring critical information is clearly visible.
High-Brightness Blue LEDs: Employs dedicated red LEDs to produce sharp, eye-catching monochrome content with high contrast, ideal for status indicators, warning signs, and numeric displays.
Durable & Reliable Design: Features a sturdy construction and stable SMD packaging for long-term operational reliability. Designed for continuous operation with consistent performance.
Easy Integration & Maintenance: A simple modular design enables straightforward assembly into large-scale panels and supports easy module replacement, minimizing maintenance time and costs.
Ideal for: Industrial process control boards, transportation information screens (bus/train schedules, parking guidance), public service announcement displays, warehouse stock indicators, and other applications requiring clear, reliable, and single-color information presentation.
Parameter
| Parameter Name | Product Parameter | Product Parameter | |
| Model Name |
Single Blue 2835 high brightness |
Single Blue 2835 |
|
| Screen | Maximum power consumption | 340 W/㎡ | 350 W/㎡ |
|
Usage environment |
Outdoor | ||
|
Viewing distance |
≥10m | ||
|
Blind spot rate |
Less than 0.03% | ||
| Brightness | ≥ 1700 cd/㎡ | ≥700 cd/㎡ | |
| Average power consumption of the screen | 150 W/㎡ | 150- 200 W/㎡ | |
| Horizontal viewing angle of screen | 85±15 degree | ||
|
Vertical viewing angle of the screen |
45±10 degree | ||
| Module |
Pixel Pitch |
10mm | |
|
Pixel Density |
10000 Dots/㎡ | ||
| Resolution | 32x16=512 Dots | ||
| Structural characteristics | Integrated light drive system | ||
| Pixel composition | 1R | ||
| Drive mode | 1/4scan constant current drive | ||
| Input voltage | 4.5-5.5 V | ||
|
Kit materials |
Polycarbonate PC material | ||
| Weight | 230 g | 200 g | |
| Power of unit module | 17 W | 15W | |
| Size (Long, Wide, and Thick) | 320*160*15（mm) | ||
| Maximum current | 3.4 A | 3 A | |
|
Number of modules supported by 200w power supply |
<12 pieces | <15 pieces | |
|
System |
Frame Frequency |
>60 frames per second | |
|
Refresh frequency |
≧ 80HZ | ||
|
Control mode |
Computer control, one-to-one correspondence point by point, video synchronization, real-time display |
||
|
Brightness adjustment |
256 level manual/automatic |
||
| Driver chip mode | |||
Core Advantages of Hoozoe P10 SMD Monochrome LED Module
SMD Technology for Reliable Performance
Utilizing Surface-Mount Device (SMD) LEDs, this module features a compact design with strong solder joint integrity and consistent luminous output. The encapsulated structure enhances protection against environmental factors while ensuring stable operation in both indoor and covered outdoor applications.
Clear Monochrome Display
Available in single-color options such as red, green, blue, or white, the module delivers sharp, high-contrast visibility ideal for displaying text, numbers, symbols, and basic graphics—ensuring clear and effective messaging.
High Brightness for Optimal Visibility
Equipped with high-intensity SMD LEDs, the module provides strong and uniform brightness, maintaining readability even in daylight or well-lit environments.
Durable & Weather-Resistant Design
Built with robust protection against dust and moisture, suitable for indoor and sheltered outdoor installations. Designed to perform reliably across a range of temperatures and environmental conditions.
Long Lifespan & Low Maintenance
Engineered for extended operation with a typical lifespan of 50,000–80,000 hours, minimizing maintenance needs and offering dependable long-term performance in varied application scenarios.

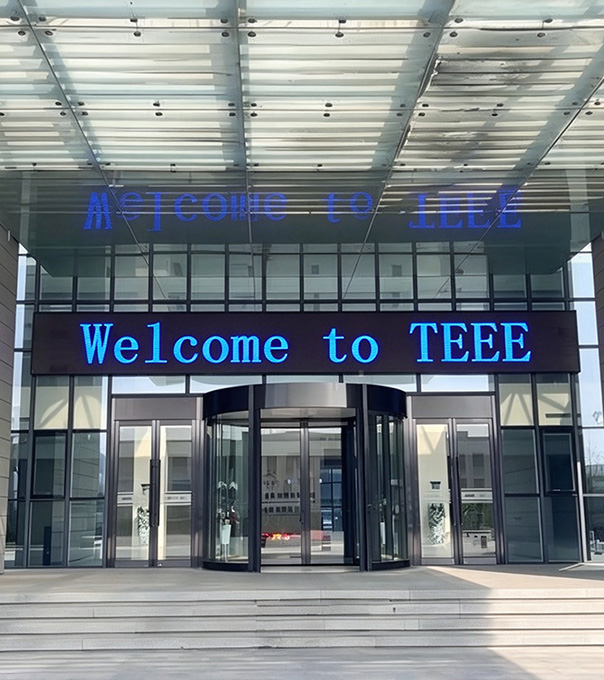

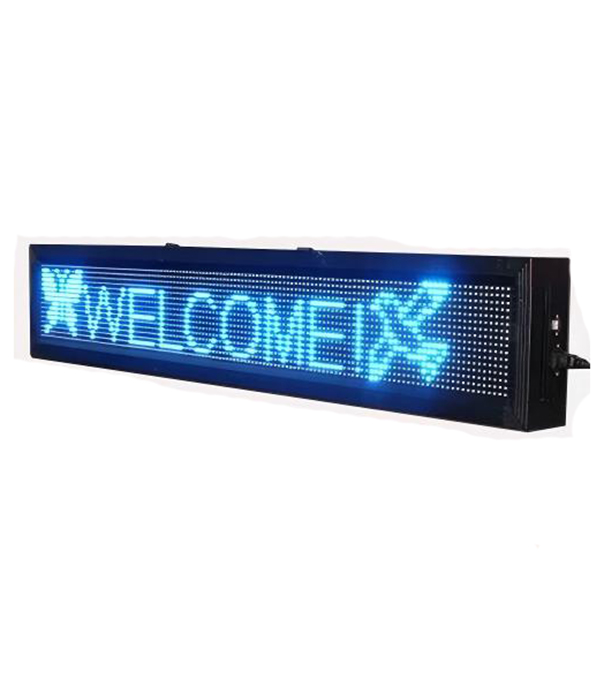

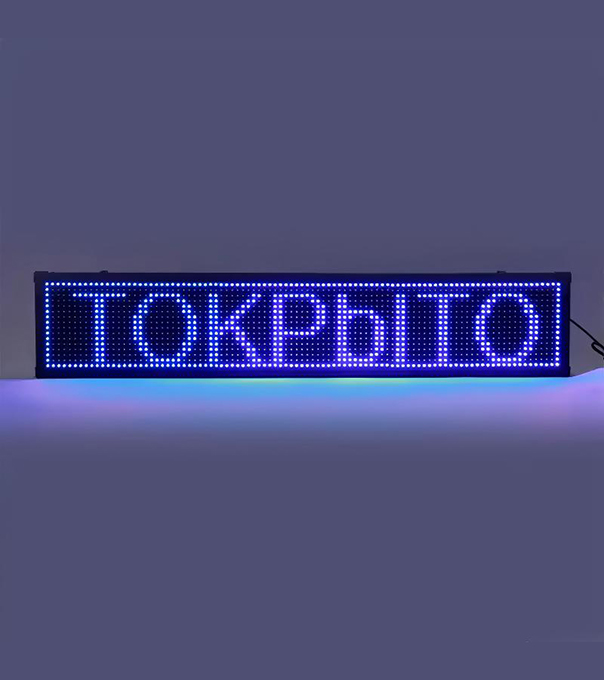

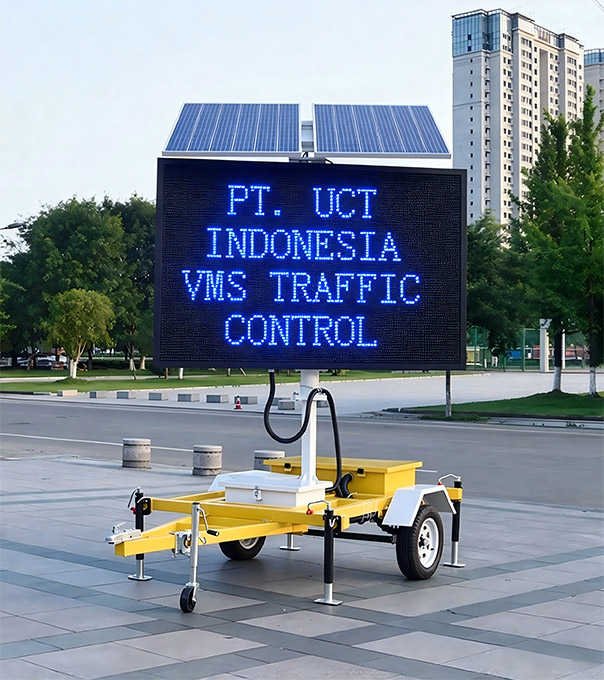

Applications Scenario
