SMD Outdoor P10 LED Display Full Color Module is a cost-effective solution for ultra-large, long-distance outdoor displays. With a 10mm pixel pitch, it delivers clear content from afar, ideal for highway billboards, stadiums, and airport signage. Built to IP65 standards with high-brightness LEDs (≥3500 cd/m²), it ensures vivid visibility in any lighting.
бренд :
HoozoeМодель :
SMD Outdoor P10 LED Display Full Color ModuleЗаказ (минимальный объем) :
50Оплата :
TTПроисхождение продукта :
ZhangzhouЦвет :
Full colorПорт отправки :
Xiamen/ShenzhenВремя выполнения :
10 daysМасса :
436gFeatures
Pixel Pitch
With a 10mm pixel pitch, this module is engineered for optimal clarity at ultra-long viewing distances. It delivers highly recognizable content for monumental installations, achieving an exceptional balance between visual impact and significant cost savings per square meter.
High Brightness & Visibility
Equipped with high-intensity outdoor LEDs providing brightness levels of ≥3500 cd/m², it ensures vivid and stable visuals even under direct sunlight. Automatic brightness adjustment (0–100%) adapts to ambient lighting for consistent and comfortable viewing quality in all conditions.
Optimal Viewing Distance
Optimized for viewing distances of 20 meters and beyond, it is the ideal solution for applications such as highway gantry billboards, large stadium perimeter screens, port authority displays, and distant building facade signage.
Reliable Outdoor Design
Built to IP65 standards for complete protection against dust and water ingress. The housing is constructed from robust die-cast aluminum with advanced thermal management, ensuring stable operation across a wide temperature range (-30℃ to +60℃). UV-resistant materials prevent color degradation over time, guaranteeing long-term durability.
Easy Installation & Maintenance
The modular design allows for quick assembly and flexible front/rear maintenance. Each unit undergoes rigorous brightness and color calibration before shipment, guaranteeing seamless uniformity and consistency across the entire display system.
Typical Applications
Highway gantry advertising signs, large sports venue perimeter screens, port terminal information displays, distant building rooftop signs, and other mega-format outdoor installations that demand reliable long-range visibility and all-weather performance.
Parameter
| Parameter Name | Product Parameter | |
| Screen | Maximum power consumption | 440 W/㎡ |
|
Usage environment |
Outdoor | |
|
Viewing distance |
≥10m | |
|
Blind spot rate |
Less than 0.03% | |
| Brightness | > 3500 cd/㎡ | |
| Average power consumption of the screen | 260-300 W/㎡ | |
| Horizontal viewing angle of screen | 120±20 degree | |
|
Vertical viewing angle of the screen |
120±10 degree | |

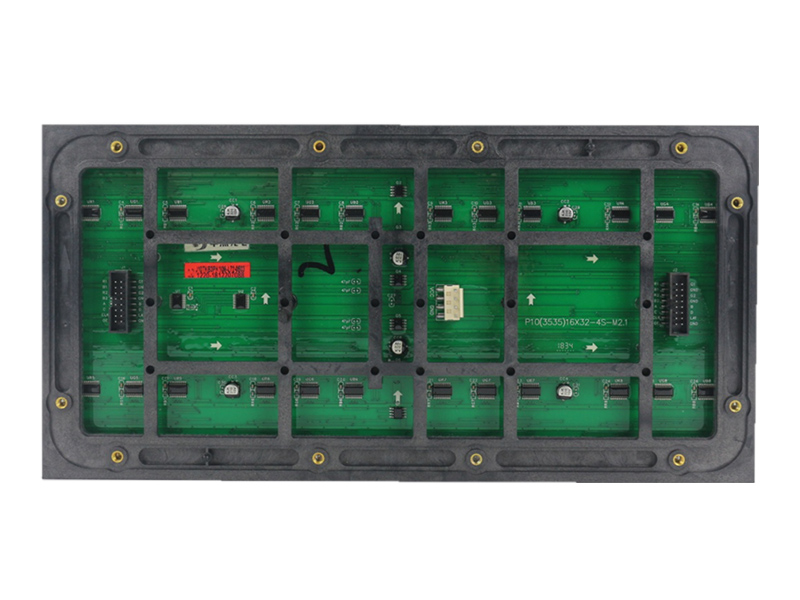

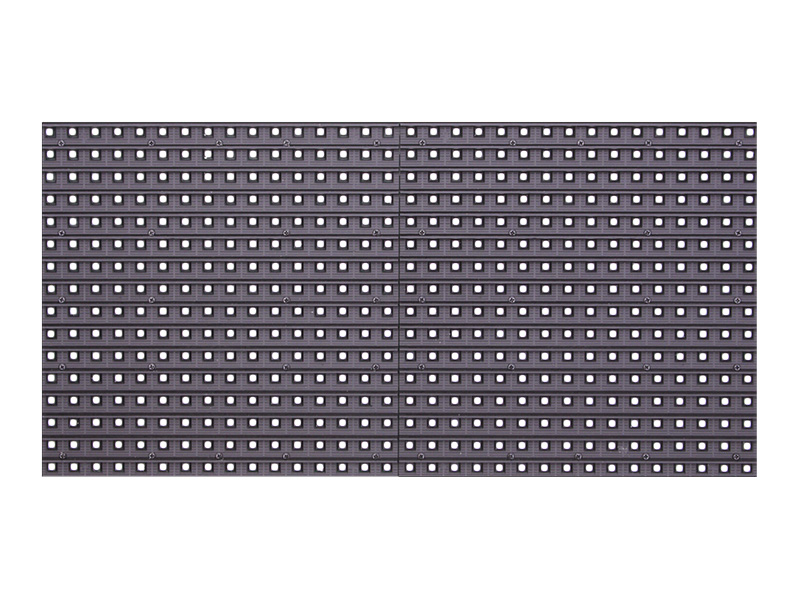

| Module |
Pixel Pitch |
10 mm |
|
Pixel Density |
10000 Dots/㎡ | |
| Resolution | 32x16=512 Dots | |
| Structural characteristics | Integrated light drive system | |
| Pixel composition | 1R1G1B | |
| Drive mode | 1/4 scan constant current drive | |
| Input voltage | 4.8-5.5V | |
|
Kit materials |
Polycarbonate PC material | |
| Weight | 436g | |
| Power of unit module | 23W | |
| Size (Long, Wide, and Thick) | 320*160*20（mm) | |
| Maximum current | 4.5 A | |
|
Number of modules supported by 200w power supply |
<7 pieces | |
|
System |
Frame Frequency |
>60 frames per second |
|
Refresh frequency |
With 64 dots at 2880Hz (16384 grayscale) With 64 dots at 1920Hz (better in lower grayscale) With 128 dots at 1440Hz With 192 dots at 1200Hz |
|
|
Control mode |
Computer control, one-to-one correspondence point by point, video synchronization, real-time display |
|
|
Brightness adjustment |
256 level manual/automatic |
|
| Driver chip mode |
Buffer 74HC245, Decode 74HC138, Line Tube 4953, Dual Latch Constant Current SM16207 |
|

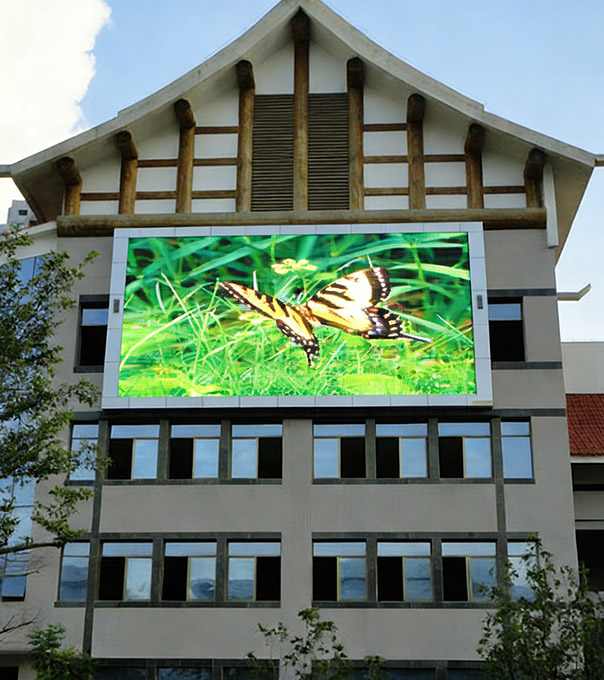

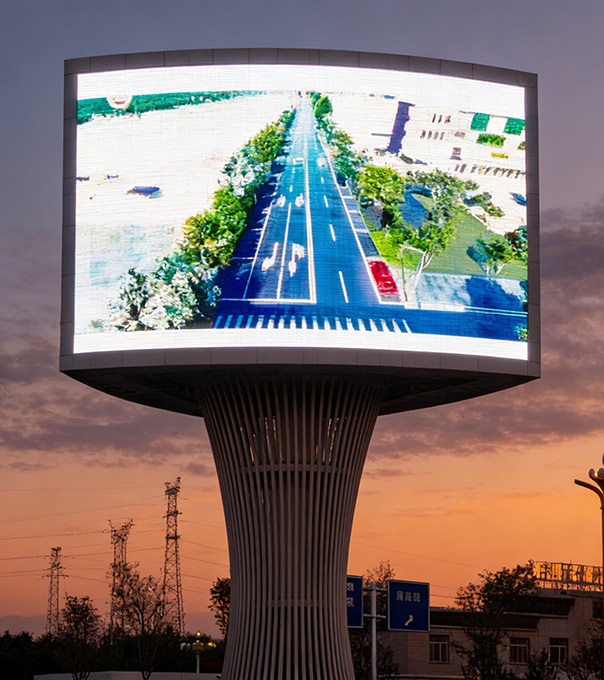

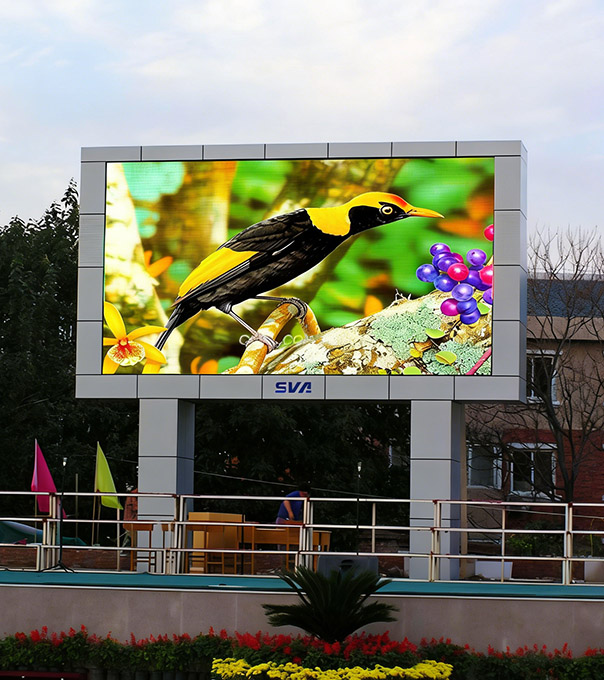

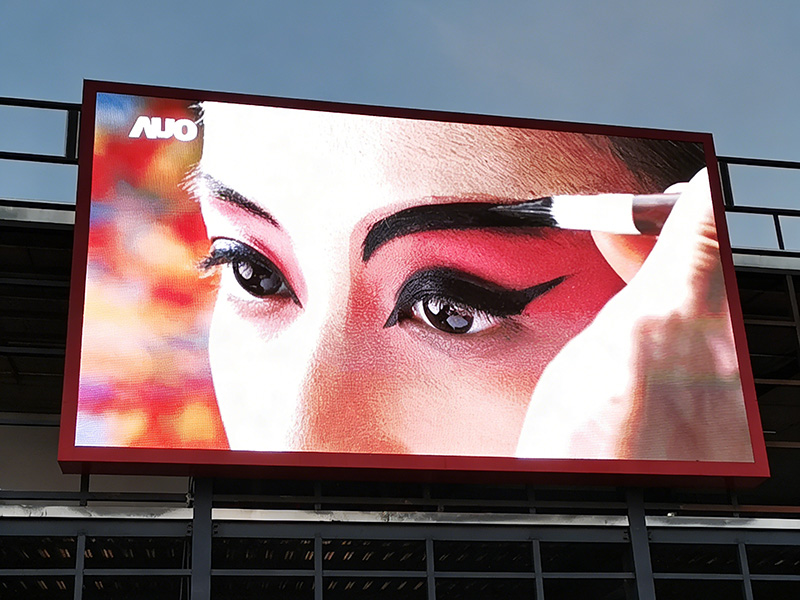

Applications Scenario
