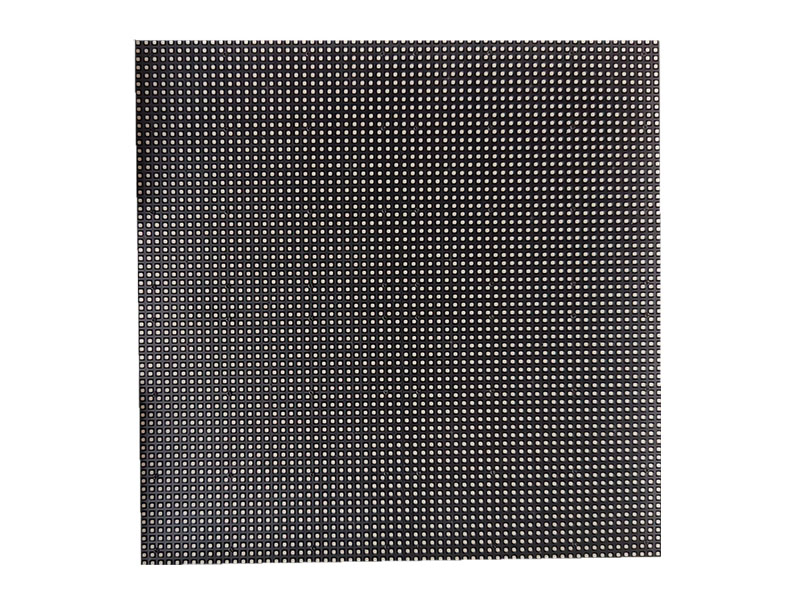

A premium all-weather display solution engineered for superior close to medium-range viewing. With a fine 3mm pixel pitch and high brightness, it delivers sharp, vibrant, and sunlight-readable visuals—ideal for high-impact outdoor advertising, corporate facades, retail displays, and public information screens.
бренд :
HoozoeМодель :
SMD Outdoor P3 LED Full Color ModuleЗаказ (минимальный объем) :
50Оплата :
TTПроисхождение продукта :
ZhangzhouЦвет :
Full colorПорт отправки :
Xiamen/ShenzhenВремя выполнения :
10 daysМасса :
342gFeatures
Pixel Pitch
With a precise pixel pitch of 3.0 mm, this module delivers high-definition image quality within the medium-density range for outdoor displays. It offers an outstanding balance of visual continuity and project cost, making it an ideal choice for premium large-scale outdoor installations that demand both detail and value.
High Brightness & Outdoor Visibility
Equipped with high-performance outdoor-standard LEDs, it provides typical brightness levels of ≥5000 cd/m², ensuring clear, vivid, and color-rich visuals that remain highly readable even under direct sunlight.
Optimal Viewing Distance
Designed for medium to close-range viewing, it delivers a seamless and engaging visual experience at distances ranging from approximately 4 to 15 meters, effectively eliminating visible pixelation for viewers in outdoor plazas, retail fronts, and transit areas.
Reliable Outdoor Technology
Built for durability, it meets or exceeds IP65 protection standards for complete defense against dust and water jets. The module integrates UV-resistant materials, operates reliably across a wide temperature range (-30°C to +60°C), and features efficient die-cast aluminum housing for superior heat dissipation and long-term stability in diverse climates.
High Performance & Uniformity
Utilizing a high refresh rate (typically ≥1920Hz) and advanced grayscale processing, it eliminates scanning lines and flicker while enabling smooth color transitions. Each module undergoes factory brightness and color calibration to guarantee exceptional uniformity across the entire display surface.
Typical Applications
Perfect for high-impact outdoor installations such as premium digital billboards, corporate building facades, shopping mall media walls, transportation hub information displays, and event stage screens where superior image quality and reliable all-weather performance are essential.
Parameter
|
Parameter Name
|
Product Parameter
|
|
| Screen |
Maximum power consumption
|
810 W/㎡
|
|
Usage environment
|
Outdoor
|
|
|
Viewing distance
|
≥3m
|
|
|
Blind spot rate
|
Less than 0.03%
|
|
|
Brightness
|
≥ 5000 cd/㎡
|
|
|
Average power consumption of the screen
|
300-500W/㎡
|
|
|
Horizontal viewing angle of screen
|
120±20 degree
|
|
|
Vertical viewing angle of the screen
|
120±10 degree
|
|
| Module |
Pixel Pitch
|
3 mm
|
|
Pixel Density
|
111111 Dots/㎡
|
|
|
Resolution
|
64*64=4096 Dots
|
|
|
Structural characteristics
|
Integrated light drive system
|
|
|
Pixel composition
|
1R1G1B
|
|
|
Drive mode
|
1/16 scan constant current drive
|
|
|
Input voltage
|
4.5-5.0V
|
|
|
Kit materials
|
Polycarbonate PC material
|
|
|
Weight
|
342g
|
|
|
Power of unit module
|
30W
|
|
|
Size (Long, Wide, and Thick)
|
192*192*16（mm）
|
|
|
Maximum current
|
6A
|
|
|
Number of modules supported by 200w power supply
|
<6 pieces
|
|
| System |
Frame Frequency
|
>60 frames per second
|
|
Refresh frequency
|
1920Hz
|
|
|
Control mode
|
Computer control, one-to-one correspondence point by point, video synchronization,
real-time display
|
|
|
Brightness adjustment
|
256 level manual/automatic
|
|
|
Driver chip model
|
74HC245, Decoder 74HC138, Dual Latch Constant Current IC, Line Driver 7258
|
|

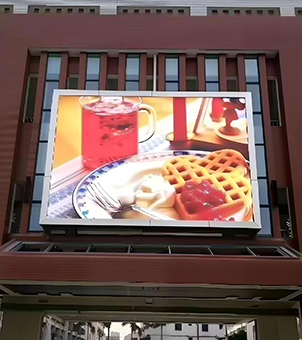

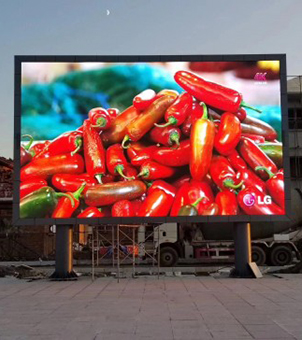

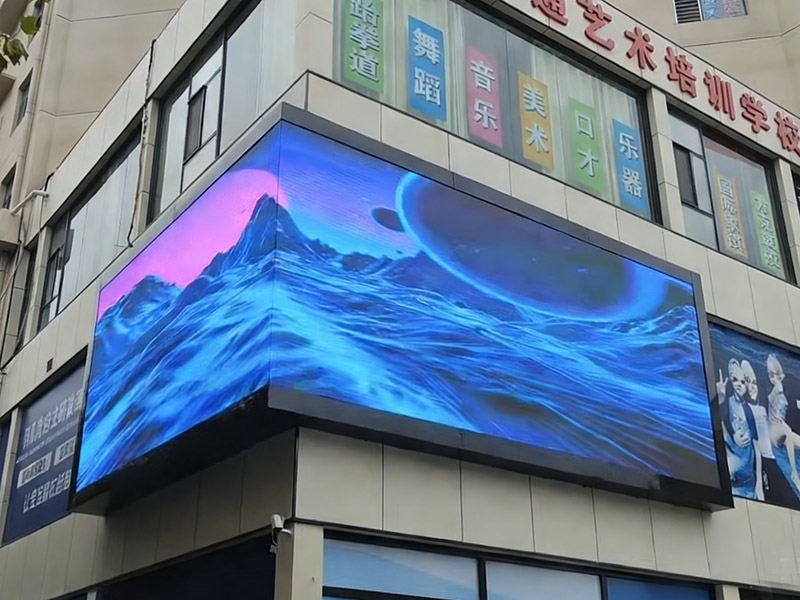

Applications Scenario
