A high-performance flexible LED solution designed to deliver sharp visuals at an optimal balance of resolution and value. Its 1.53mm pixel pitch enables clear, detailed images for both standard and creative display applications.
бренд :
HoozoeМодель :
SMD P1.53 Flexible LED ModuleЗаказ (минимальный объем) :
80 pcsОплата :
TTПроисхождение продукта :
Zhangzhou FujianЦвет :
Full colorПорт отправки :
XiamenВремя выполнения :
7-15 daysМасса :
256gFeatures
Fine Pixel Pitch: A 1.53mm pixel pitch provides excellent image clarity for mid-to-close viewing distances (typically 3-8 meters), balancing high definition with cost-efficiency.

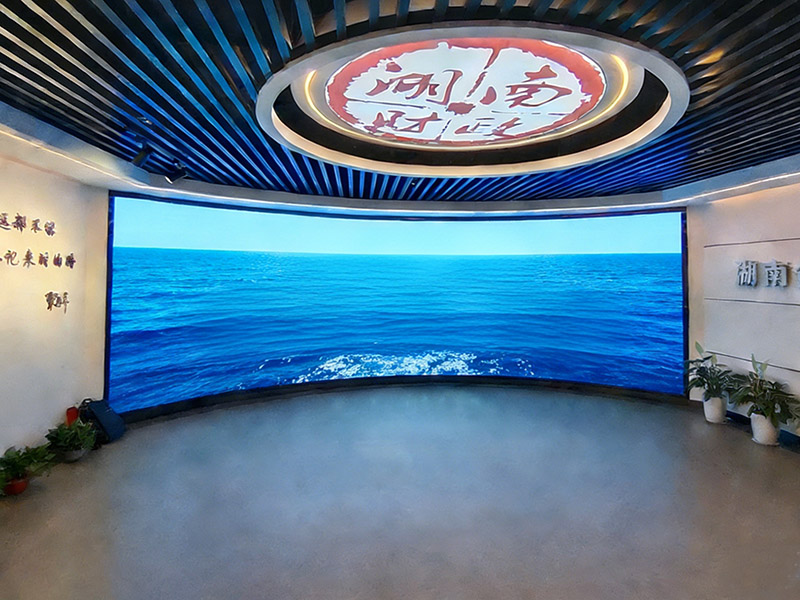

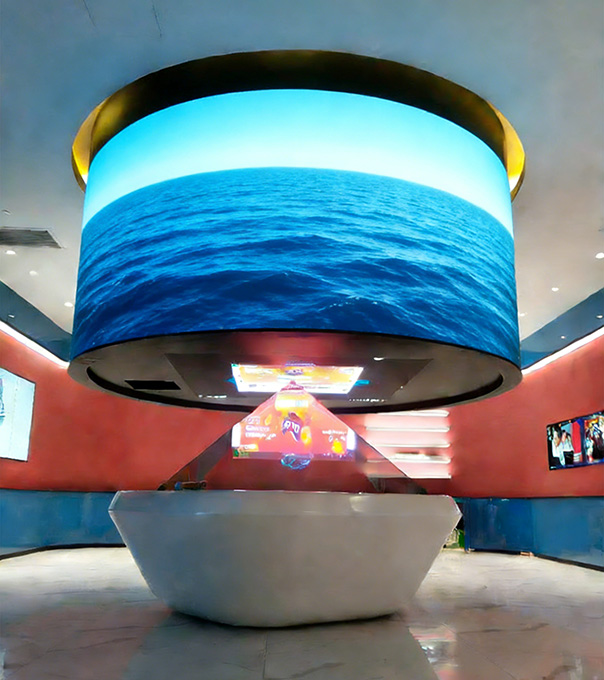

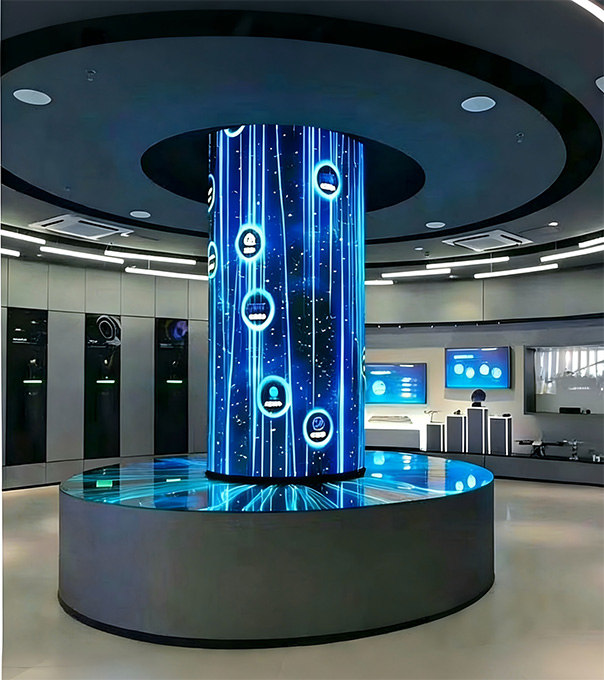

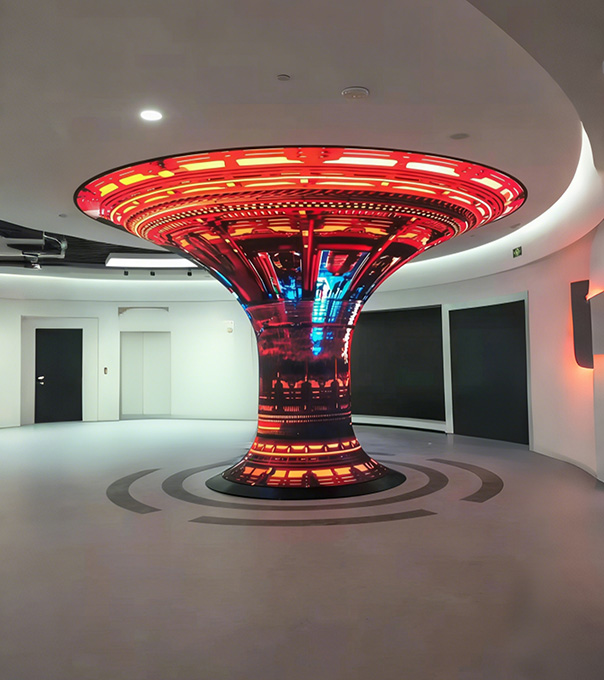

Flexible & Adaptable: The bendable module design allows for smooth installation on curved surfaces and architectural features, unlocking creative possibilities beyond flat screens.
Stable Visual Performance: Driven by a high refresh rate (≥3840Hz), it effectively eliminates flicker and scan lines for smooth video capture and playback. Factory calibration ensures consistent brightness and color across the display.
Reliable & User-Friendly: Lightweight modular construction supports fast installation and easy front/rear maintenance. Designed for stability in controlled indoor environments.
Ideal for: Corporate lobbies, retail media walls, broadcast studios, control rooms, event stages, and other premium installations requiring flexible formats and reliable, high-quality visuals.

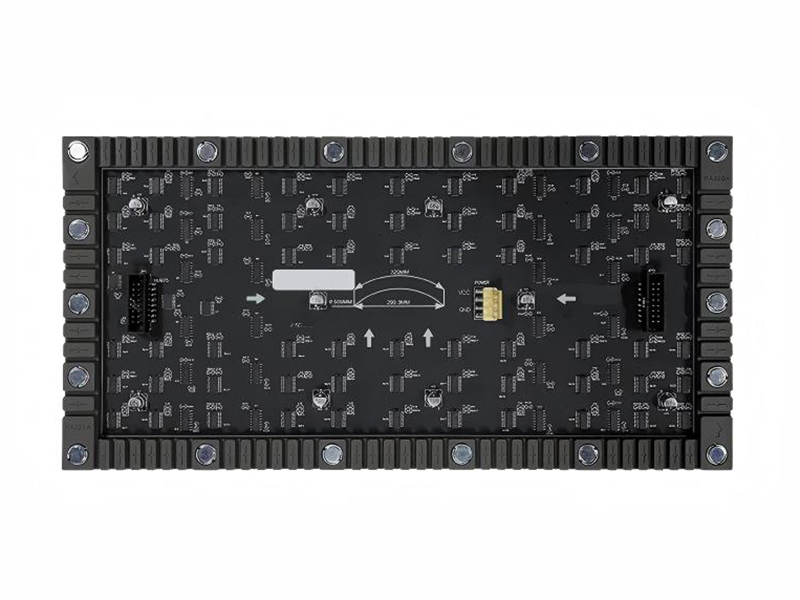

Parameter
| Parameter Name | Product Parameter | |
Module |
Module Name | P1.538 |
|
Module Size |
320*160mm | |
|
Pixel Pitch |
1.538mm | |
|
Pixel Density |
432640 Dots/㎡ | |
|
Pixel Composition |
1R1G1B | |
| Package Mode | SMD1212 | |
| Resolution | 208x104=21632 Dots | |
|
Module Max Power |
≤15 W | |
|
Module thickness |
7.6mm | |
|
Weight |
0.256 Kg | |
|
Drive Mode |
constant current driver | |
|
Scan Type |
1/52 scan | |
| Port Type | HUB75B | |
|
Brightness |
≥500 cd/㎡ | |
|
Viewing Angle |
160°(W) 120°(H) | |
|
Average Power |
270 W/㎡ | |
|
Max Power |
≤650 W/㎡ | |
|
Refresh frequency |
≥3840Hz |
