SMD P2 Flexible LED Module

An optimal entry into flexible LED display technology, offering a proven balance of image quality, creative freedom, and project affordability. Its 2.0mm pixel pitch is a versatile choice for impactful large-format installations where viewing distance allows.

Параметры продукта

бренд :
Hoozoe
Модель :
SMD P2 Flexible LED Module
Заказ (минимальный объем) :
80 pcs
Оплата :
TT
Происхождение продукта :
Zhangzhou Fujian
Цвет :
Full color
Порт отправки :
Xiamen
Время выполнения :
7-15 days
Масса :
256g

ЗАПРОС СЕЙЧАС

Features

Proven & Cost-Effective Pitch: A 2.0mm pixel pitch provides clear and engaging visuals for standard viewing distances (typically 6-20 meters), representing an ideal entry point for large-scale flexible screen projects.

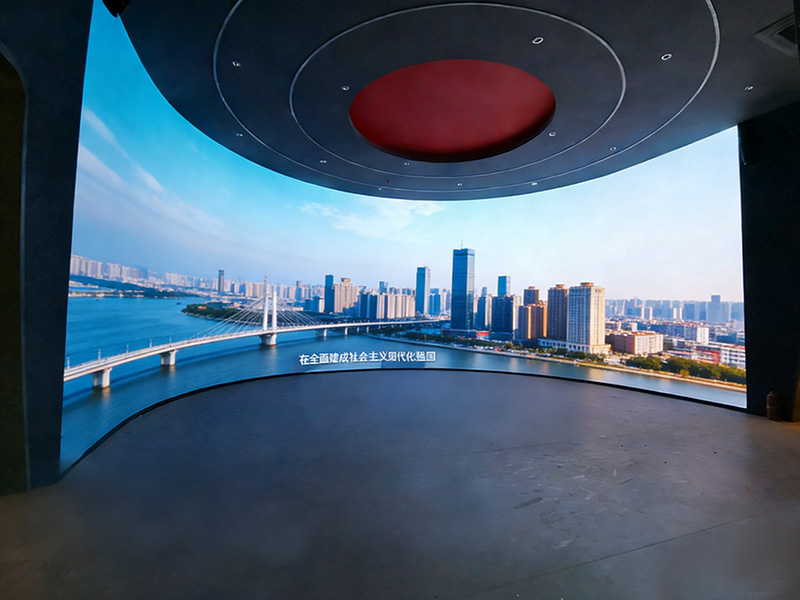

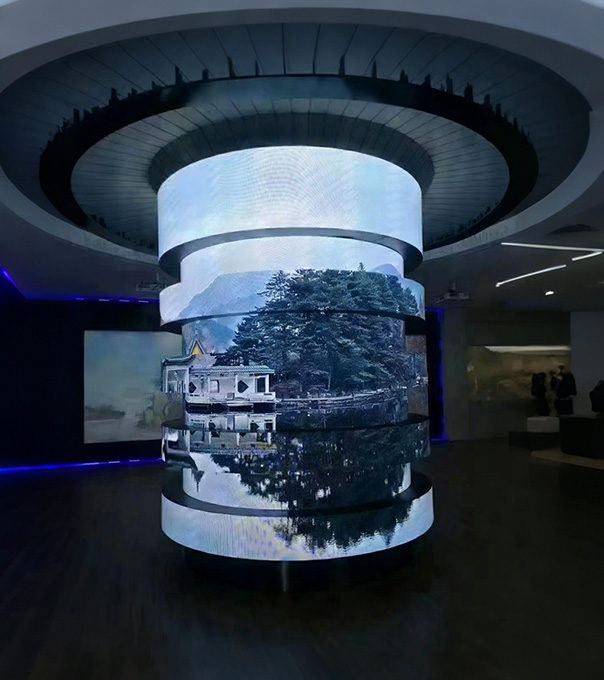

Seamless Curved Installations: The flexible design enables smooth integration onto curved architectural elements, transforming spaces with dynamic shapes and immersive visuals.

Stable & Broadcast-Ready: High refresh rate technology (≥3840Hz) ensures content appears smooth and flicker-free for live events and camera capture, delivering a professional viewing experience.

Designed for Deployment: Rugged construction ensures reliability, while the lightweight, modular format allows for rapid assembly and straightforward front/rear maintenance, streamlining large-project execution.

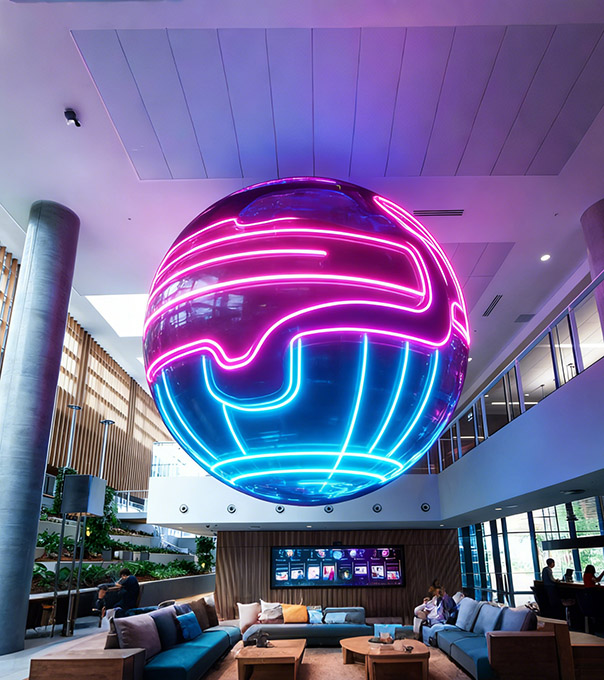

Ideal for: Event stages and backdrops, large retail media walls, corporate atrium displays, broadcast studio sets, and other applications requiring large-scale visual impact combined with creative form factors.

Parameter

	Parameter Name	Product Parameter
Screen	Maximum power consumption	490 W/㎡
	Usage environment	Indoor
	Viewing distance	≥2.5m
	Blind spot rate	Less than 0.03%
	Brightness	≥ 500 cd/㎡
	Average power consumption of the screen	200-290 W/㎡
	Horizontal viewing angle of screen	120±10 degree
	Vertical viewing angle of the screen	120±10 degree

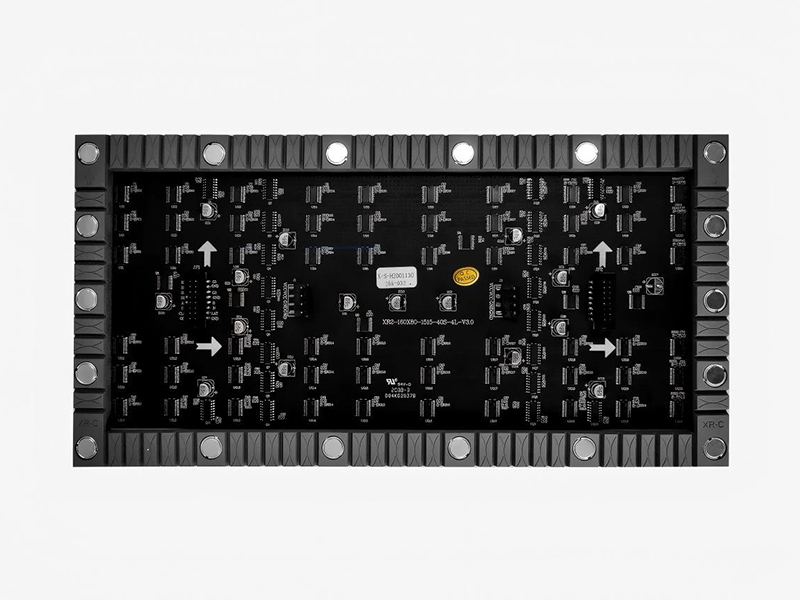

Module	Pixel Pitch	2.0mm
	Pixel Density	250000 Dots/㎡
	Resolution	160x80=12800 Dots
	Structural characteristics	Integrated light drive system
	Pixel composition	1R1G1B
	Drive mode	1/40 scan constant current drive
	Input voltage	4.2-5.5 V
	Kit materials	Polycarbonate PC material
	Weight	256 g
	Power of unit module	16 W
	Size (Long, Wide, and Thick)	3201607.65（mm)
	Maximum current	5.2 A
	Use 4.2V/5V Switching Power Supply with Load Quantity	<6pieces P2.0 full-color unit boards
System	Frame Frequency	>60 frames per second
	Refresh frequency	≥3840Hz
	Control mode	Computer control, one-to-one correspondence point by point, video synchronization, real-time display
	Brightness adjustment	256 level manual/automatic
Driver chip mode	Buffer 74HC245, decoding line tube 5958, PWM constant current FM6363 or LS9930
